Ocean iron concentration
Contents
Ocean iron concentration#
%load_ext autoreload
%autoreload 2
import xarray as xr
from dask.distributed import Client
import catalog
import util
xr.set_options(keep_attrs=True)
/glade/work/kristenk/miniconda/envs/cesm-exp/lib/python3.7/site-packages/dask_jobqueue/core.py:20: FutureWarning: tmpfile is deprecated and will be removed in a future release. Please use dask.utils.tmpfile instead.
from distributed.utils import tmpfile
<xarray.core.options.set_options at 0x2b6a9fe72fd0>
import matplotlib.pyplot as plt
import cartopy
import cartopy.crs as ccrs
import pop_tools
import pandas as pd
import tools
import plot
import matt_utils
import matplotlib.gridspec as gridspec
import numpy as np
from itertools import product
import cmocean
import matplotlib.colors as colors
ds_grid = pop_tools.get_grid('POP_gx1v7')
lons = ds_grid.TLONG
lats = ds_grid.TLAT
depths = ds_grid.z_t * 0.01
Parameters#
casename = 'g.e22a06.G1850ECOIAF_JRA_PHYS_DEV.TL319_g17.scope_v1'
component = 'pop'
stream = 'h'
cluster_scheduler_address = None
# Parameters
casename = "g.e22.GOMIPECOIAF_JRA-1p4-2018.TL319_g17.4p2z.001branch"
component = "pop"
stream = "h"
cluster_scheduler_address = "tcp://10.12.206.3:35506"
assert component in ['pop']
assert stream in ['h', 'h.ecosys.nday1']
Connect to cluster#
if cluster_scheduler_address is None:
cluster, client = util.get_ClusterClient()
cluster.scale(12)
else:
client = Client(cluster_scheduler_address)
client
Client
Client-77421e3a-935a-11ed-b3fa-3cecef1acc46
| Connection method: Direct | |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/8787/status |
Scheduler Info
Scheduler
Scheduler-7b28f886-17c1-40f8-ae24-3360603786e8
| Comm: tcp://10.12.206.3:35506 | Workers: 32 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/8787/status | Total threads: 32 |
| Started: 39 minutes ago | Total memory: 744.96 GiB |
Workers
Worker: PBSCluster-0
| Comm: tcp://10.12.206.60:40381 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/37473/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.60:43642 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-she593m8 | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 511.20 MiB | Spilled bytes: 0 B |
| Read bytes: 24.44 kiB | Write bytes: 46.52 kiB |
Worker: PBSCluster-1
| Comm: tcp://10.12.206.57:34913 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/43168/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.57:40520 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-ais4w5nl | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 700.14 MiB | Spilled bytes: 0 B |
| Read bytes: 35.85 MiB | Write bytes: 22.34 kiB |
Worker: PBSCluster-10
| Comm: tcp://10.12.206.55:40610 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/41580/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.55:41770 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-24q12p4a | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 552.84 MiB | Spilled bytes: 0 B |
| Read bytes: 18.43 kiB | Write bytes: 15.79 kiB |
Worker: PBSCluster-11
| Comm: tcp://10.12.206.35:36760 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/34231/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.35:39163 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-tm589a2g | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 0.0% | Last seen: Just now |
| Memory usage: 725.41 MiB | Spilled bytes: 0 B |
| Read bytes: 14.53 kiB | Write bytes: 8.68 kiB |
Worker: PBSCluster-12
| Comm: tcp://10.12.206.42:46667 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/44609/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.42:43503 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-63bl396p | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 523.46 MiB | Spilled bytes: 0 B |
| Read bytes: 10.91 kiB | Write bytes: 0.94 kiB |
Worker: PBSCluster-13
| Comm: tcp://10.12.206.55:34741 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/41987/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.55:39933 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-3taktpky | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 537.59 MiB | Spilled bytes: 0 B |
| Read bytes: 18.44 kiB | Write bytes: 19.03 kiB |
Worker: PBSCluster-14
| Comm: tcp://10.12.206.42:44723 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/38884/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.42:37139 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-btgwv71o | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 0.0% | Last seen: Just now |
| Memory usage: 544.63 MiB | Spilled bytes: 0 B |
| Read bytes: 11.39 kiB | Write bytes: 4.17 kiB |
Worker: PBSCluster-15
| Comm: tcp://10.12.206.60:34840 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/36356/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.60:36517 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-s50upym9 | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 553.09 MiB | Spilled bytes: 0 B |
| Read bytes: 24.45 kiB | Write bytes: 46.54 kiB |
Worker: PBSCluster-16
| Comm: tcp://10.12.206.55:33480 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/44604/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.55:34515 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-20gqvxq8 | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 486.03 MiB | Spilled bytes: 0 B |
| Read bytes: 18.96 kiB | Write bytes: 484.39 kiB |
Worker: PBSCluster-17
| Comm: tcp://10.12.206.42:46005 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/44117/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.42:32947 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-18iilri4 | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 597.78 MiB | Spilled bytes: 0 B |
| Read bytes: 11.04 kiB | Write bytes: 2.55 kiB |
Worker: PBSCluster-18
| Comm: tcp://10.12.206.60:33226 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/42773/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.60:46337 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-8qq6z3y3 | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 520.46 MiB | Spilled bytes: 0 B |
| Read bytes: 539.34 kiB | Write bytes: 1.02 MiB |
Worker: PBSCluster-19
| Comm: tcp://10.12.206.36:36934 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/38605/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.36:40345 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-0wibvgh_ | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 0.0% | Last seen: Just now |
| Memory usage: 650.31 MiB | Spilled bytes: 0 B |
| Read bytes: 100.41 kiB | Write bytes: 44.00 kiB |
Worker: PBSCluster-2
| Comm: tcp://10.12.206.42:35532 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/37233/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.42:38029 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-tvn8qi89 | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 487.30 MiB | Spilled bytes: 0 B |
| Read bytes: 11.03 kiB | Write bytes: 2.55 kiB |
Worker: PBSCluster-20
| Comm: tcp://10.12.206.57:44618 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/35828/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.57:39590 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-j87b3i6z | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 537.97 MiB | Spilled bytes: 0 B |
| Read bytes: 10.25 MiB | Write bytes: 16.49 kiB |
Worker: PBSCluster-21
| Comm: tcp://10.12.206.42:36146 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/42013/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.42:42567 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-te65hpsa | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 709.42 MiB | Spilled bytes: 0 B |
| Read bytes: 11.98 kiB | Write bytes: 6.59 kiB |
Worker: PBSCluster-22
| Comm: tcp://10.12.206.37:45266 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/41617/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.37:46778 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-6zjl_rf2 | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 0.0% | Last seen: Just now |
| Memory usage: 499.16 MiB | Spilled bytes: 0 B |
| Read bytes: 92.72 kiB | Write bytes: 147.30 kiB |
Worker: PBSCluster-23
| Comm: tcp://10.12.206.57:36646 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/33282/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.57:39220 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-tedt0oqb | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 602.02 MiB | Spilled bytes: 0 B |
| Read bytes: 35.80 MiB | Write bytes: 22.31 kiB |
Worker: PBSCluster-24
| Comm: tcp://10.12.206.35:43781 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/41280/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.35:41682 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-oenmf7ye | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 543.07 MiB | Spilled bytes: 0 B |
| Read bytes: 15.30 kiB | Write bytes: 10.53 kiB |
Worker: PBSCluster-25
| Comm: tcp://10.12.206.42:38958 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/45762/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.42:41096 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-r999w54s | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 525.09 MiB | Spilled bytes: 0 B |
| Read bytes: 11.26 kiB | Write bytes: 4.16 kiB |
Worker: PBSCluster-26
| Comm: tcp://10.12.206.35:41019 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/46197/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.35:41093 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-n8z_ugpj | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 619.80 MiB | Spilled bytes: 0 B |
| Read bytes: 15.29 kiB | Write bytes: 10.53 kiB |
Worker: PBSCluster-27
| Comm: tcp://10.12.206.40:37756 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/34868/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.40:46061 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-ah4h4uwy | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 559.59 MiB | Spilled bytes: 0 B |
| Read bytes: 15.28 kiB | Write bytes: 6.48 kiB |
Worker: PBSCluster-28
| Comm: tcp://10.12.206.55:40536 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/40763/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.55:43688 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-mqh1_swd | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 499.59 MiB | Spilled bytes: 0 B |
| Read bytes: 18.34 kiB | Write bytes: 484.07 kiB |
Worker: PBSCluster-29
| Comm: tcp://10.12.206.35:43010 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/45869/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.35:38155 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-0zp2yifw | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 507.53 MiB | Spilled bytes: 0 B |
| Read bytes: 14.42 kiB | Write bytes: 7.88 kiB |
Worker: PBSCluster-3
| Comm: tcp://10.12.206.55:43243 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/45154/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.55:40506 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-d77lpe1m | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 0.0% | Last seen: Just now |
| Memory usage: 483.93 MiB | Spilled bytes: 0 B |
| Read bytes: 18.02 kiB | Write bytes: 481.42 kiB |
Worker: PBSCluster-30
| Comm: tcp://10.12.206.42:40059 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/38562/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.42:35150 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-s1j98ibm | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 510.62 MiB | Spilled bytes: 0 B |
| Read bytes: 10.91 kiB | Write bytes: 0.94 kiB |
Worker: PBSCluster-31
| Comm: tcp://10.12.206.55:40509 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/46123/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.55:42505 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-0193oowl | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 539.46 MiB | Spilled bytes: 0 B |
| Read bytes: 18.99 kiB | Write bytes: 485.22 kiB |
Worker: PBSCluster-4
| Comm: tcp://10.12.206.60:33761 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/38547/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.60:43086 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-go_20xsh | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 611.59 MiB | Spilled bytes: 0 B |
| Read bytes: 24.48 kiB | Write bytes: 46.60 kiB |
Worker: PBSCluster-5
| Comm: tcp://10.12.206.56:36183 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/39960/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.56:36523 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-ak_et0qx | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 497.62 MiB | Spilled bytes: 0 B |
| Read bytes: 291.00 MiB | Write bytes: 28.29 MiB |
Worker: PBSCluster-6
| Comm: tcp://10.12.206.55:42418 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/43316/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.55:35755 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-w069mt42 | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 482.81 MiB | Spilled bytes: 0 B |
| Read bytes: 18.95 kiB | Write bytes: 486.50 kiB |
Worker: PBSCluster-7
| Comm: tcp://10.12.206.42:38064 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/33959/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.42:37237 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-8g92ok8a | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 4.0% | Last seen: Just now |
| Memory usage: 503.98 MiB | Spilled bytes: 0 B |
| Read bytes: 11.74 kiB | Write bytes: 5.78 kiB |
Worker: PBSCluster-8
| Comm: tcp://10.12.206.35:46716 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/38950/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.35:46823 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-t0bj5mka | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 490.59 MiB | Spilled bytes: 0 B |
| Read bytes: 14.53 kiB | Write bytes: 9.48 kiB |
Worker: PBSCluster-9
| Comm: tcp://10.12.206.55:36074 | Total threads: 1 |
| Dashboard: https://jupyterhub.hpc.ucar.edu/stable/user/kristenk/proxy/41381/status | Memory: 23.28 GiB |
| Nanny: tcp://10.12.206.55:35112 | |
| Local directory: /glade/scratch/kristenk/dask-workers/dask-worker-space/worker-vzrt3wyj | |
| Tasks executing: 0 | Tasks in memory: 0 |
| Tasks ready: 0 | Tasks in flight: 0 |
| CPU usage: 2.0% | Last seen: Just now |
| Memory usage: 535.39 MiB | Spilled bytes: 0 B |
| Read bytes: 18.01 kiB | Write bytes: 481.24 kiB |
Load the data#
dsets = catalog.to_dataset_dict(
case=casename,
component=component,
stream=stream,
)
dsets.keys()
g.e22.GOMIPECOIAF_JRA-1p4-2018.TL319_g17.4p2z.001branch pop h /glade/scratch/kristenk/archive
dict_keys(['g.e22.GOMIPECOIAF_JRA-1p4-2018.TL319_g17.4p2z.001branch.pop.h'])
Compute long-term mean Fe concentration#
ds = dsets[f'{casename}.{component}.{stream}']
variables =['Fe']
keep_vars=['z_t','z_t_150m','dz','time_bound','TAREA','TLAT','TLONG'] + variables
ds = ds.drop([v for v in ds.variables if v not in keep_vars])

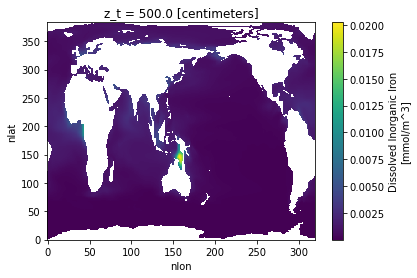

ds.Fe.isel(time=0,z_t=0).plot()
<matplotlib.collections.QuadMesh at 0x2b6ada8d39d0>
dt_wgt = ds.time_bound.diff('d2').squeeze()
dt_wgt /= dt_wgt.sum()
#dt_wgt
ds = ds.weighted(dt_wgt).mean('time')
nmolcm3_to_nM = 1.e3
ds['Fe'] = ds['Fe'] * nmolcm3_to_nM
ds['Fe'].attrs['units'] = 'nM'
Compare to observational Fe database#
(need ref)
dFe_obs_file = '/glade/u/home/kristenk/cesm2-marbl/notebooks/discrete_obs/dFe-database-2021-05-20.csv'
df = pd.read_csv(dFe_obs_file, na_values=-999.).dropna(axis=0, how='all')
%%time
df.obs_stream.add_model_field(ds.Fe)
df
CPU times: user 16.9 s, sys: 164 ms, total: 17 s
Wall time: 4min 13s
| lon | lat | depth | dFe_obs | Fe | |
|---|---|---|---|---|---|
| 0 | 210.010 | -16.0018 | 20.0 | 0.540000 | 0.095124 |
| 1 | 210.010 | -16.0018 | 35.0 | 0.440000 | 0.094715 |
| 2 | 210.010 | -16.0019 | 50.0 | 0.480000 | 0.093150 |
| 3 | 210.010 | -16.0019 | 80.0 | 0.400000 | 0.087125 |
| 4 | 210.010 | -16.0020 | 100.0 | 0.390000 | 0.090777 |
| ... | ... | ... | ... | ... | ... |
| 27777 | 160.051 | 47.0032 | 3929.6 | 0.825681 | 0.505122 |
| 27778 | 160.051 | 47.0032 | 3929.8 | 0.902248 | 0.505119 |
| 27779 | 160.051 | 47.0032 | 4900.4 | 0.555630 | NaN |
| 27780 | 160.051 | 47.0032 | 4900.9 | 0.621851 | NaN |
| 27781 | 160.051 | 47.0032 | 5210.1 | 0.573220 | NaN |
27782 rows × 5 columns

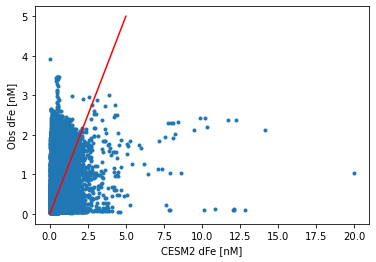

plt.plot(df.dFe_obs, df.Fe, '.')
plt.xlabel('CESM2 dFe [nM]')
plt.ylabel('Obs dFe [nM]')
plt.plot([0, 5], [0, 5], 'r-')
[<matplotlib.lines.Line2D at 0x2b6adbbc93d0>]

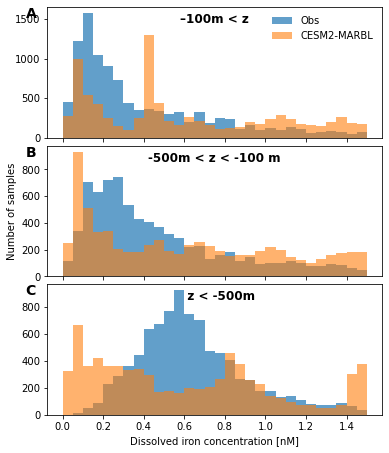

fig, axs = plot.canvas(3, 1, figsize=(6, 2.5), use_gridspec=True, hspace=0.06)
dx = 0.05
bin_edges = np.arange(0., 1.5+dx, dx)
bins = np.vstack((bin_edges[:-1], bin_edges[1:])).mean(axis=0)
depth_ranges = {
'–100m < z': (0., 100.),
'-500m < z < -100 m': (100., 500.),
' z < -500m': (500., 1e36),
}
for n, (key, depth_range) in enumerate(depth_ranges.items()):
ax = axs[n, 0]
df_sub = df.loc[(depth_range[0] <= df.depth) & (df.depth <= depth_range[1])]
hist, _ = np.histogram(df_sub.dFe_obs.values, bin_edges)
ax.bar(bins, hist, width=dx, alpha=0.7, label='Obs')
hist, _ = np.histogram(df_sub.Fe.values, bin_edges)
ax.bar(bins, hist, width=dx, alpha=0.6, label='CESM2-MARBL')
if n == 0:
ax.legend(loc='upper right', frameon=False)
if n < 2:
ax.set_xticklabels([])
ylm = ax.get_ylim()
ax.text(0.75, ylm[1] - 0.12 * np.diff(ylm), key,
fontweight='bold',
fontsize=12,
ha='center',
)
if n == 1:
ax.set_ylabel('Number of samples')
if n == 2:
ax.set_xlabel('Dissolved iron concentration [nM]')
matt_utils.label_plots(fig, [ax for ax in axs.ravel()], xoff=-0.05, yoff=-0.02)
dsp = matt_utils.pop_add_cyclic(ds)
field = 'Fe'

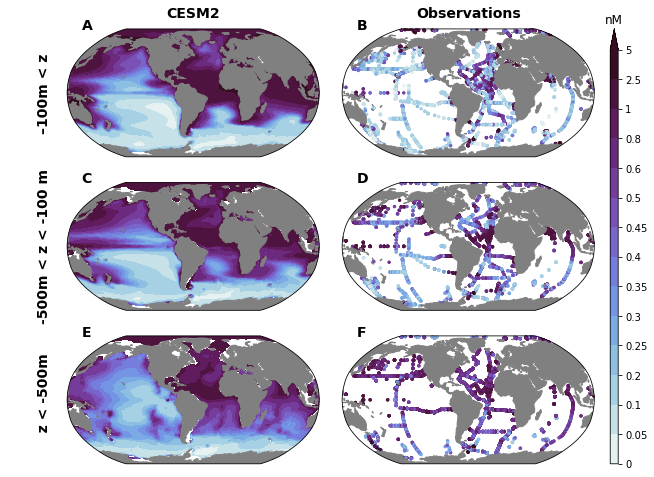

levels = {'Fe': [0., 0.05, 0.1, 0.2, 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.8, 1., 2.5, 5.0]}
fig = plt.figure(figsize=(10, 8))
prj = ccrs.Robinson(central_longitude=305.0)
nrow, ncol = 3, 2
gs = gridspec.GridSpec(
nrows=nrow, ncols=ncol+1,
width_ratios=(1, 1, 0.03),
wspace=0.05,
hspace=0.2,
)
axs = np.empty((nrow, ncol)).astype(object)
caxs= np.empty((nrow, ncol)).astype(object)
for i, j in product(range(nrow), range(ncol)):
axs[i, j] = plt.subplot(gs[i, j], projection=prj)
cax = plt.subplot(gs[:, -1])
cmap_field = cmocean.cm.dense
for i, (key, depth_range) in enumerate(depth_ranges.items()):
for j in range(2):
ax = axs[i, j]
if j == 0:
zslice = slice(depth_range[0]*100., depth_range[1]*100.)
cf = ax.contourf(
dsp.TLONG,dsp.TLAT, dsp[field].sel(z_t=zslice).mean('z_t'),
levels=levels[field],
extend='max',
cmap=cmap_field,
norm=colors.BoundaryNorm(levels[field], ncolors=cmap_field.N),
transform=ccrs.PlateCarree(),
)
else:
df_sub = df.loc[(depth_range[0] <= df.depth) & (df.depth <= depth_range[1])]
sc = ax.scatter(
df_sub.lon, df_sub.lat, c=df_sub.dFe_obs.values,
cmap=cmap_field,
norm=colors.BoundaryNorm(levels[field], ncolors=cmap_field.N),
s=6,
transform=ccrs.PlateCarree(),
)
land = ax.add_feature(
cartopy.feature.NaturalEarthFeature(
'physical','land','110m',
edgecolor='face',
facecolor='gray'
)
)
cb = plt.colorbar(cf, cax=cax, ticks=levels['Fe'])
if 'units' in dsp[field].attrs:
cb.ax.set_title(dsp[field].attrs['units'])
cb.ax.set_yticklabels([f'{f:g}' for f in levels['Fe']])
matt_utils.subplot_col_labels(axs[0, :], ['CESM2', 'Observations'])
matt_utils.subplot_row_labels(axs[:, 0], depth_ranges.keys(), xoff=60)
matt_utils.label_plots(fig, [ax for ax in axs.ravel()], xoff=0.02, yoff=0)
